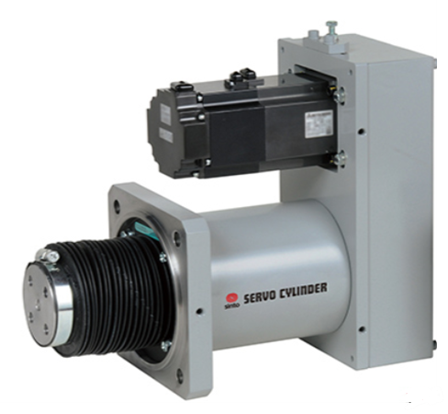

Not Just an Electronic Cylinder • A Smarter Future

Traditional cylinders rely on air or oil.Servo Electric Cylinders deliver precision and intelligence that no other system can beat.

Micron-Level Precision — Beyond the Limits of Hydraulic and Pneumatic Cylinders

• Hydraulic and pneumatic cylinders rely on pressure control, causing hysteresis and limited accuracy
• Servo electric cylinders deliver millimeter-level precision in displacement and force control
• Ensure high repeatability and traceability

Data-Driven Intelligence — Enabling Predictive Maintenance and Smart Factory Integration

• Real-time feedback on position, speed, and load
• Process optimization based on operational data
• Predictive maintenance and proactive alerts
• Fullycontrollable, measurable, and optimizable operations

Features

Industry’s Smallest and Lightest

Lighter and more compact, reducing overall equipment size and height, saving valuable floor space.

Significantly Reduced Lubrication Frequency

Eliminates the extra maintenance costs and risks associated with hydraulic or pneumatic systems.

Environmentally Friendly

Lower energy consumption reduces greenhouse gas emissions and decreases noise by 20%.

Servo Controller for Diverse Motion Control

Our in-house servo controller allows flexible sequence programming, enabling easy customization of complex positioning and force control tasks.

Dedicated PC Software for Quality Management

Visualize force data during operation, combine multiple criteria for flexible judgment, and enhance accuracy and reliability to meet quality management and traceability requirements.

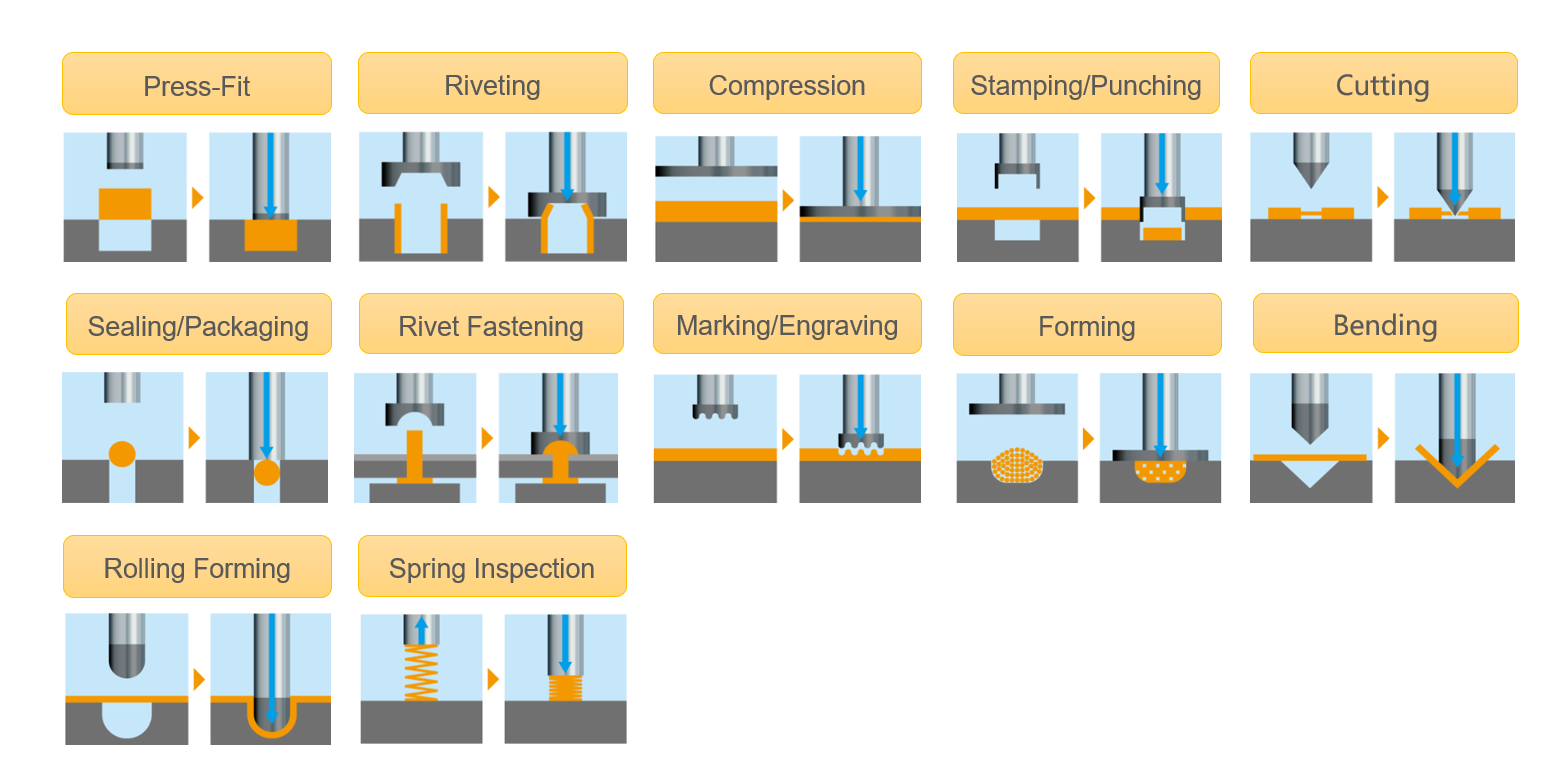

Applicable Process



Model & Specification

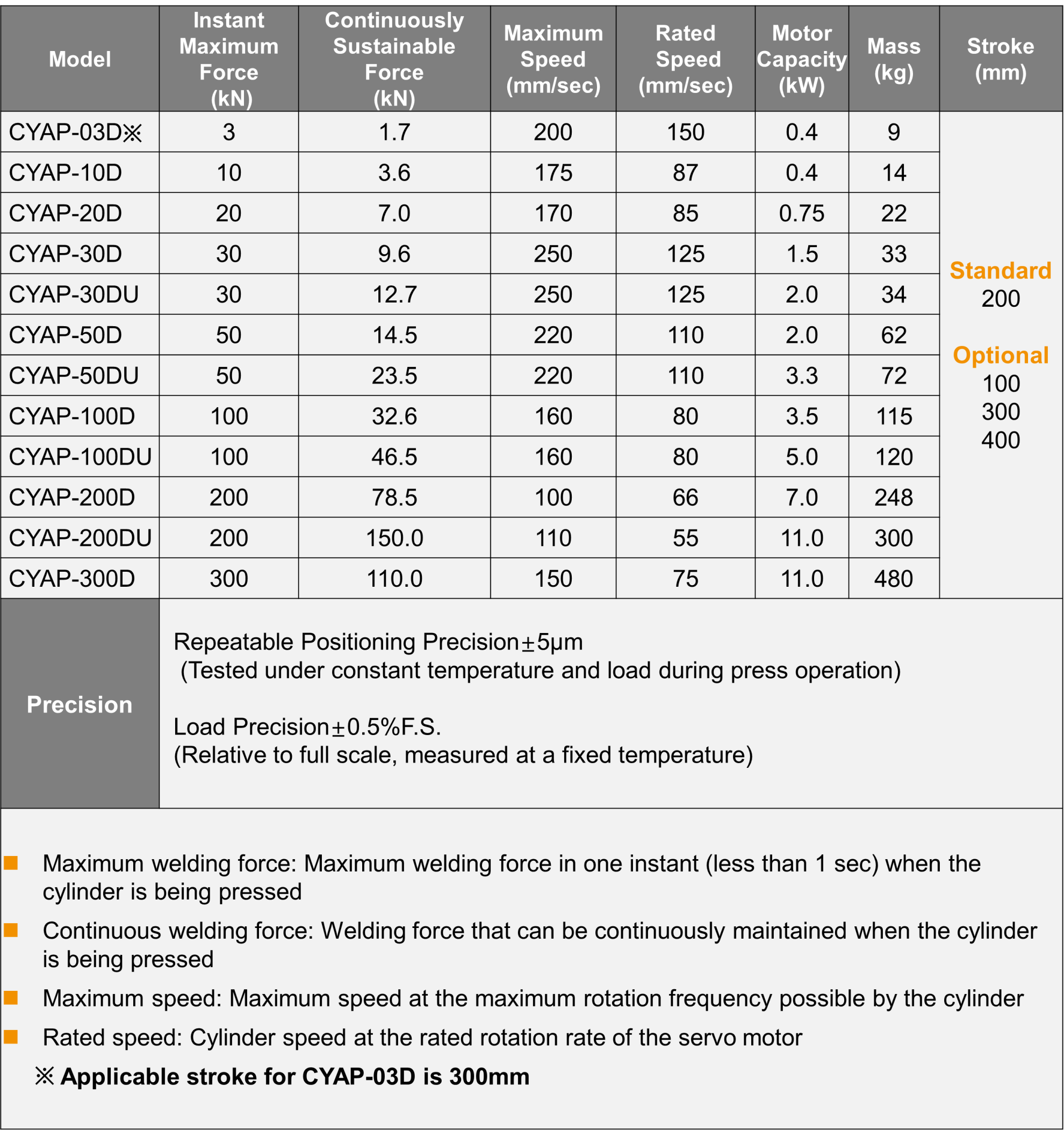

Model	Instant Maximum Force		Continuously Sustainable Force (kN)	Maximum Speed (mm/sec)	Rated Speed (mm/sec)	Motor Capacity (kW)	Mass (kg)	Stroke (mm)	Precision
	(kN)	(kgf)
CYAP-03D	3	306	1.7	200	150	0.4	9	Standard 200 Optional 100 300 400	Repeatable Positioning Precision  ±5μm (Tested under constant temperature and load during press operation)  Load Precision ±0.5%F.S. (Relative to full scale, measured at a fixed temperature)
CYAP-10D	10	1,020	3.6	175	87	0.4	14
CYAP-20D	20	2,040	7.0	170	85	0.75	22
CYAP-30D	30	3,060	9.6	250	125	1.5	33
CYAP-30DU	30	3,060	12.7	250	125	2.0	34
CYAP-50D	50	5,100	14.5	220	110	2.0	62
CYAP-50DU	50	5,100	23.5	220	110	3.3	72
CYAP-100D	100	10,200	32.6	160	80	3.5	115
CYAP-100DU	100	10,200	46.5	160	80	5.0	120
CYAP-200D	200	20,400	78.5	100	66	7.0	248
CYAP-200DU	200	20,400	150.0	110	55	11.0	300
CYAP-300D	300	30,600	110.0	150	75	11.0	480
Maximum welding force: Maximum welding force in one instant (less than 1 sec) when the cylinder is being pressed Continuous welding force: Welding force that can be continuously maintained when the cylinder is being pressed Maximum speed: Maximum speed at the maximum rotation frequency possible by the cylinder Rated speed: Cylinder speed at the rated rotation rate of the servo motor ※Applicable stroke for CYAP-03D is 300mm

Be aware that shapes and specifications are subject to change without notice to improve the devices. Please contact us during the planning phases of your project. The above dimensions are for standard specifications models. (Total length may change with modification of the maximum stroke.)



STANDARD EQUIPMENT

• Cylinder body including servo motor and load cell
• Servo amplifier
• Servo cylinder controller
• Standard cables (5m)

OPTIONS

• Teaching Box
• SCUB Management Software
• Robot-specific cables
• Memory Card

※ Also Available:
The CYAP-S Series offers simple lifting or push-pull functions in an even more compact design, along with products such as servo presses and servo roller bonding machines.

※ Customized Solutions:
We provide tailored recommendations to meet your specific needs—contact us for details.
